Specification:
Type:
Dimensions:
Weight:
Product Details
Applications

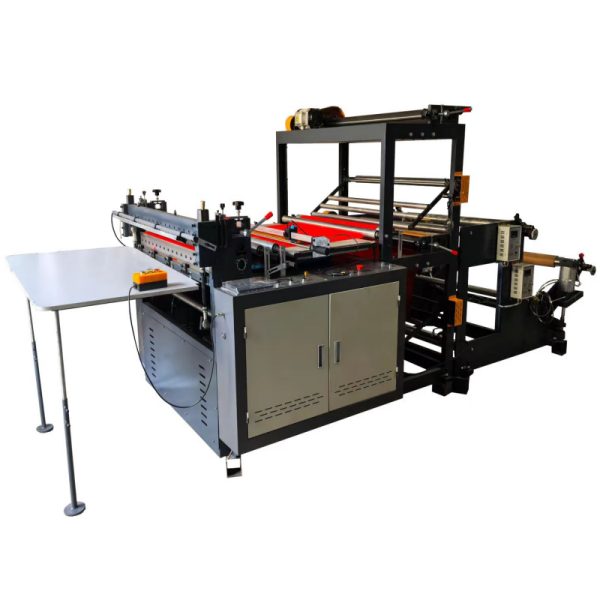

This machine cross-cuts the honeycomb paper roll into sheets, which are then sales-packaged for end customers.
Key Advantages
1. High Output – Two Sheets per cut – Produces two sheets per cutting action; with 30 m/min line speed, significantly boosts downstream capacity.
2. Large Unwind Diameter – Less Roll Changes – Max. unwind diameter 600 mm accommodates large rolls, reducing changeover frequency and downtime.
3. Precision Length Feeding – Accurate Cutting – Stepping motor-driven constant-length feeding with turbine reducer and rubber pressure roller ensures precise dimensions and smooth edges.
4. Stable Drive & User-friendly Control – Belt drive and aluminum guide rollers for smooth, low-noise operation; 7-inch touchscreen PC for intuitive parameter setting.
5. Active Unwinding with Adjustable Tension – DC motor-driven active feeding with manual speed adjustment for smooth, controllable unwinding.
Typical Applications
This machine cross-cuts the honeycomb paper roll into sheets, supplying ready-to-use honeycomb cushioning paper in sheets to:
· Packaging material processors
· E-commerce logistics cushioning material suppliers
· Suppliers of impact liners for home decor & electronic appliances
· Processors of protective materials for glass, ceramics & fragile goods
· High-end packaging material supply for cosmetics & floral arrangements
