Product Details
Applications
Suitable for detection, localization and evaluation of internal defects in welds, castings, forgings and pipelines.
Key Advantages
1. Advanced Square Wave Excitation Technology – Excellent penetration and signal-to-noise ratio for high-attenuation materials and thick workpieces; Adjustable pulse width, voltage and damping for high resolution on thin and composite materials.
2. Wide Detection Range – 2.0–10000mm (steel longitudinal wave) covers full-scenario inspection from thin plates to thick-walled components.
3. Well-equipped Inspection Function Modules – Continuous storage module (full waveform recording), Time-B scanning module (rapid corrosion thickness evaluation), AWS D1.1 module (steel structure weld inspection), API 5UE module (pipeline inspection), curved surface correction module (real-time correction for longitudinal seam detection in pipelines), and echo spectrum analysis.
4. Comprehensive Inspection Operation Functions – Peak memory, peak search, auto gain, waveform comparison, waveform expansion, echo envelope -covering a wide range of inspection needs.
5. Multi-standard DAC Curves & Device Compliance – DAC curves built-in with ASME, ASME III, JIS, EN1712, GB/T11345, NB/T47013.3 standards, with up to 7 customizable DAC curve parameters. The instrument complies with EN12668-1:2010 and meets TSG R0004-2009 requirements.

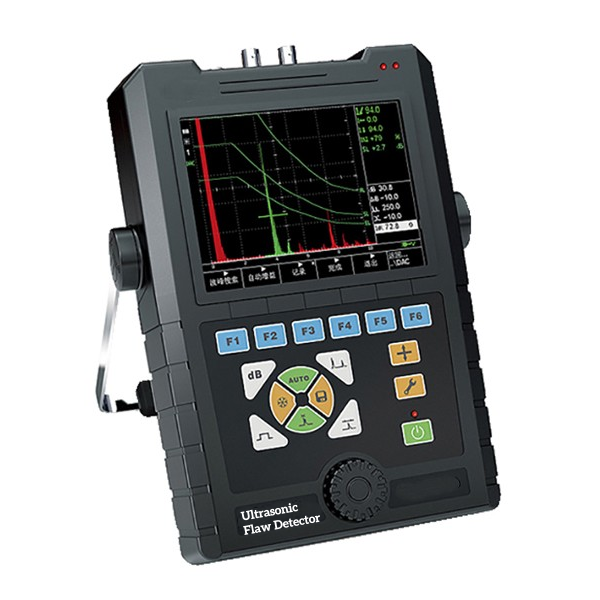

6. Lightweight and field-ready – With a total weight of only 1.5 kg and equipped with a high-resolution 5.7-inch TFT display (640×480), it is fully capable of operating in outdoor environments and under direct sunlight.
Typical Applications
· Petrochemical – Inspection of welds in pipelines and pressure vessels and in-service corrosion monitoring;
· Power & Energy – Inspection of high-temperature and high-pressure components for boilers and steam turbines;
· Transportation – Flaw detection of key structures such as rails, axles and hull welds;
· Steel Manufacturing – Internal defect detection of rolls, castings and forgings;
· Steel Structure Engineering – Inspection and evaluation of welds in building steel structures.
