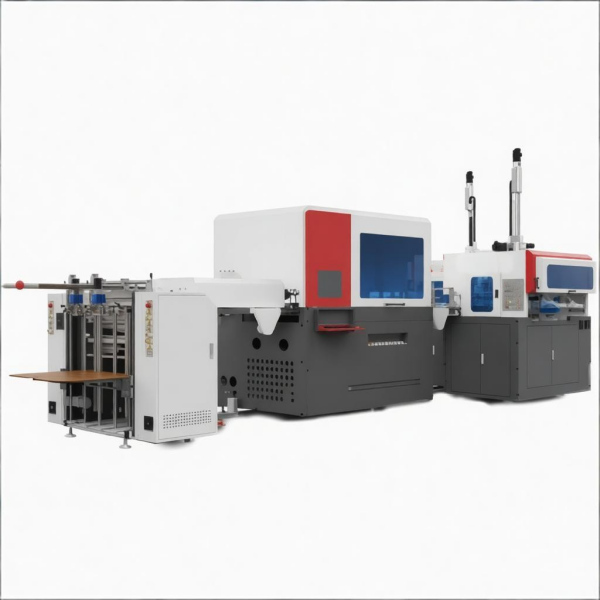

It is a full‑servo‑driven, intelligent high‑speed lid & base rigid box production line which integrates CCD vision positioning and robotic laminating technology, automatically completing paper feeding, gluing, gray board feeding, corner pasting, vision positioning & laminating, box holding, edge wrapping, and forming – delivering end‑to‑end production from raw materials to finished lid & base rigid boxes.
Compatible materials and product specifications:
· Surface paper: 80–300 g/m²
· Gray board: Thickness 1–3 mm, dimensions 74×74 mm to 650×550 mm
· Finished box: L 55–350 mm, W 55–250 mm, H 15–120 mm, square or rectangular lid & base design
· Flap width: 7–100 mm
The machine is ideal for mid‑to‑high‑end packaging markets demanding high precision, efficiency, and consistency.
Key Advantages
1. Full‑servo drive for stable & efficient operation
Feeder, gluing and conveyor are driven by premium servos – continuously variable speed, smooth transmission, accurate control, quick setup.
2. CCD vision positioning, accuracy ±0.05 mm
Dual‑camera CCD vision system with high‑precision robotic pick‑and‑place achieves ±0.05 mm repeatability, ensuring neat lamination and easy adjustment.
3. One‑key job changeover for rapid setup
Fully servo‑controlled machine supports one‑key changeover – dramatically reduces downtime, ideal for short‑run, multi‑variety orders.
4. Fully automatic inline production
Feeding, gluing, gray board feeding, corner pasting, vision lamination, forming and edge wrapping are all automated – no need for multiple separate machines.
5. Rear‑suction feeding system – no double‑feeding
Rear‑suction feeder with all‑servo control ensures reliable sheet feeding, effectively avoiding double‑feed and jam errors.
6. Box‑holding forming mechanism for square & sturdy boxes
The forming section uses a box‑holding design – stable and fast, guaranteeing boxes are square, edges are sharp, and bonding is strong.
Typical Applications
This line is dedicated to the automated production of lid & base rigid boxes. Typical applications include:
· Consumer electronics: Mobile phone boxes
· Cosmetics: Cosmetic boxes
· Jewelry & luxury goods: Jewelry cases
· Wine & spirits: High‑end wine gift box lids
