Product Details
Applications

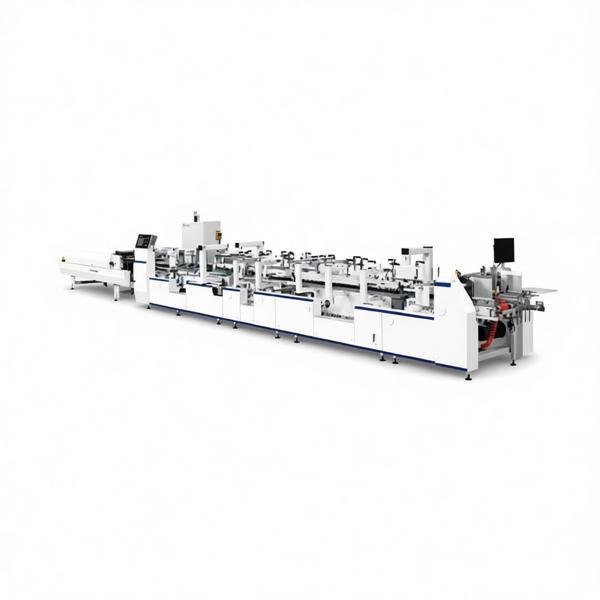

This equipment is designed for high‑speed, precise folding and gluing of cartons, serving as a key post‑press packaging machine in box production. It handles a wide range of materials, including:
· Carton board: 180–800 g/m²
· Micro‑flute corrugated board: N, F, E‑flute
· Special materials: Plastic sheets, laminated or UV‑coated boards
Supported box types include:
· Straight‑line, side‑seam, crash‑lock bottom, 4‑corner, 6‑corner, 4‑corner with lid, and complex special‑shape boxes.
The machine integrates automatic feeding, pre‑folding, lock‑bottom forming, final folding, gluing, pressing, counting, and stacking, suitable for both small‑to‑medium batch custom orders and large‑scale standardized production.
Key Advantages
1. Modular design for flexible expansion
Modular construction allows configuration for straight‑line, crash‑lock, 4/6‑corner boxes, and future upgrades – avoiding duplicate investment.
2. Independent segmented drive & wireless control
Each section driven by independent inverter‑controlled motors, with wireless remote adjustment for quick job changeovers.
3. Wide speed range
Maximum speed 400 m/min for high‑volume production; inching speed 20 m/min for easy setup.
4. Multiple gluing options
Supports cold glue, hot‑melt, PUR and other gluing systems, adaptable to different box types and materials for secure bonding.
5. Broad material compatibility
Handles carton board 180–800 g/m², N/F/E‑flute micro‑corrugated board, plastic sheets, and more.
6. Abundant optional features
Available with 4/6‑corner units, hot‑melt system, plasma treatment, Braille embossing, inline inspection/auto‑rejection – adding value to finished boxes.
7. Scratch‑protection design
Optional anti‑score feeding system and thin‑paper units protect printed surfaces from scratches and marks.
8. Precise multi‑box‑type forming
Accurately folds and glues straight‑line, side‑seam, crash‑lock, 4‑corner, 6‑corner, and 4‑corner lid boxes.
Typical Applications
· Food packaging: Cake boxes, chocolate boxes, instant food cartons, take‑away boxes, frozen food cartons
· Pharmaceutical & healthcare packaging: Medicine boxes, OTC packaging, health product cartons
· Cosmetics & personal care: Skincare cartons, cosmetic boxes, gift packaging
· Electronics packaging: Mobile phone boxes, digital accessory cartons, small appliance boxes
· Household goods & others: General merchandise cartons, stationery boxes, toy boxes
· Special applications: Window boxes, 3D display boxes, custom‑shaped cartons (achievable with optional modules)
